§ 03.12Stucco repair — TX + OH
A moisture meter, a probe, and a read of the crack pattern before we write a number. Patch, partial replacement, or full repair — only when the wall is genuinely failing. We will not sell a tear-off when the meter says the wall is sound.
We look at the lines before we touch the meter. Three signatures cover roughly 90% of the calls we get on stucco — and only one of them means the wall is genuinely failing.
Hairline diagonals, 45° from corners
Thermal — wall expanding and contracting
The wall heats every south-elevation afternoon and cools at night. Cement does not stretch; it splits along the line of least resistance. The crack itself is rarely the problem.
Sealant + texture-patch only.
Stays cosmetic for years. Water entry only if it widens past 1/16".
Stair-step zig-zag along a course line
Substrate movement — framing settled
The crack tracks the lath fasteners. House moved (foundation settle, joist deflection, an earthquake-tier rumble). The stucco is doing its job — the framing is the work.
Open the field, re-lath, three-coat back. Sometimes a structural fix below.
Crack widens ~1mm per year. Lath corrodes. Substrate rot follows.
Map cracking at the base of the wall
Moisture intrusion — water is already inside
The branching pattern shows where wet substrate has expanded and split the finish coat from beneath. The water source is uphill — flashing, parapet, kickout. The stucco is the symptom.
Trace the source first, repair the source, then open the wall.
Substrate rot accelerates. Repair cost roughly 4× per year of delay.
From the curb, every stucco wall looks the same. The layer stack underneath does not. Knock-test, edge-cut, and substrate read tell us which one is on your wall before we write a scope. We handle both — and we handle them separately.
Most common in DFW. Cement and sand over a metal mesh. Rigid. Heavy. Hollow knock.
Pull the failed field back to sound substrate, re-lath if needed, three-coat back, texture match in two passes.
Sharp, hollow ring. Heavy hand-feel.
Common on 1990s+ homes. Foam plus a polymer skin. Light. Soft hollow knock.
Moisture-meter driven. Open the wall to dry substrate, replace foam and drainage, re-coat to match. Mistaking this for traditional is how walls get torn off unnecessarily.
Soft, dull thunk. Light hand-feel.
Knuckle-tap a foot below a window. Sharp ring = traditional. Soft thunk = synthetic. Either way, we confirm with an edge cut at a soffit return before any scope is written.
We carry a Tramex non-destructive moisture meter and a probe. Every elevation gets walked. Every reading goes on the page below. The scope is built from the readings, not the driveway-glance estimate.
Water enters a hairline crack. Overnight freeze expands it. Daytime thaw releases it wider. Forty cycles a winter widens the crack by roughly 1mm a year — and once it passes 1/16", the substrate gets wet.
We bridge the crack with a UV-stable elastomeric sealant — flexible enough to ride the cycle.
Patch + texture-match goes over the sealant — never paint over the open crack.
Re-walk in the spring after the cycles run their course; the work either holds or the substrate is talking.
If it sits: the failure cascades. By year three, the patch becomes a partial replacement.
§ 12Continue the manual — related to this page
§ 03.10Remodeling
Same paint, four walls, four different jobs.
Two-coat exterior paint scoped per elevation — Sherwin-Williams Duration on the south and west, Resilience on the north, Aura on premium east walls, limewash on stone and brick. Real prep, UV-stable caulks, climate window honored.
Read →
§ 03.08Remodeling
The board you see is one of seven layers.
Vinyl, LP SmartSide, and James Hardie — scored against your wall, your climate, and how long you plan to own. Sheathing first, wrap and tape next, rainscreen behind LP, then board, trim, and finish.
Read →
§ 03.11Remodeling
Source first. Trim second.
Rot is a water problem, not a wood problem. We meter the wood, fix the upstream detail (kickout, drip edge, sealant pan), then rebuild the trim in PVC, Hardie, or primed wood per the run.
Read →

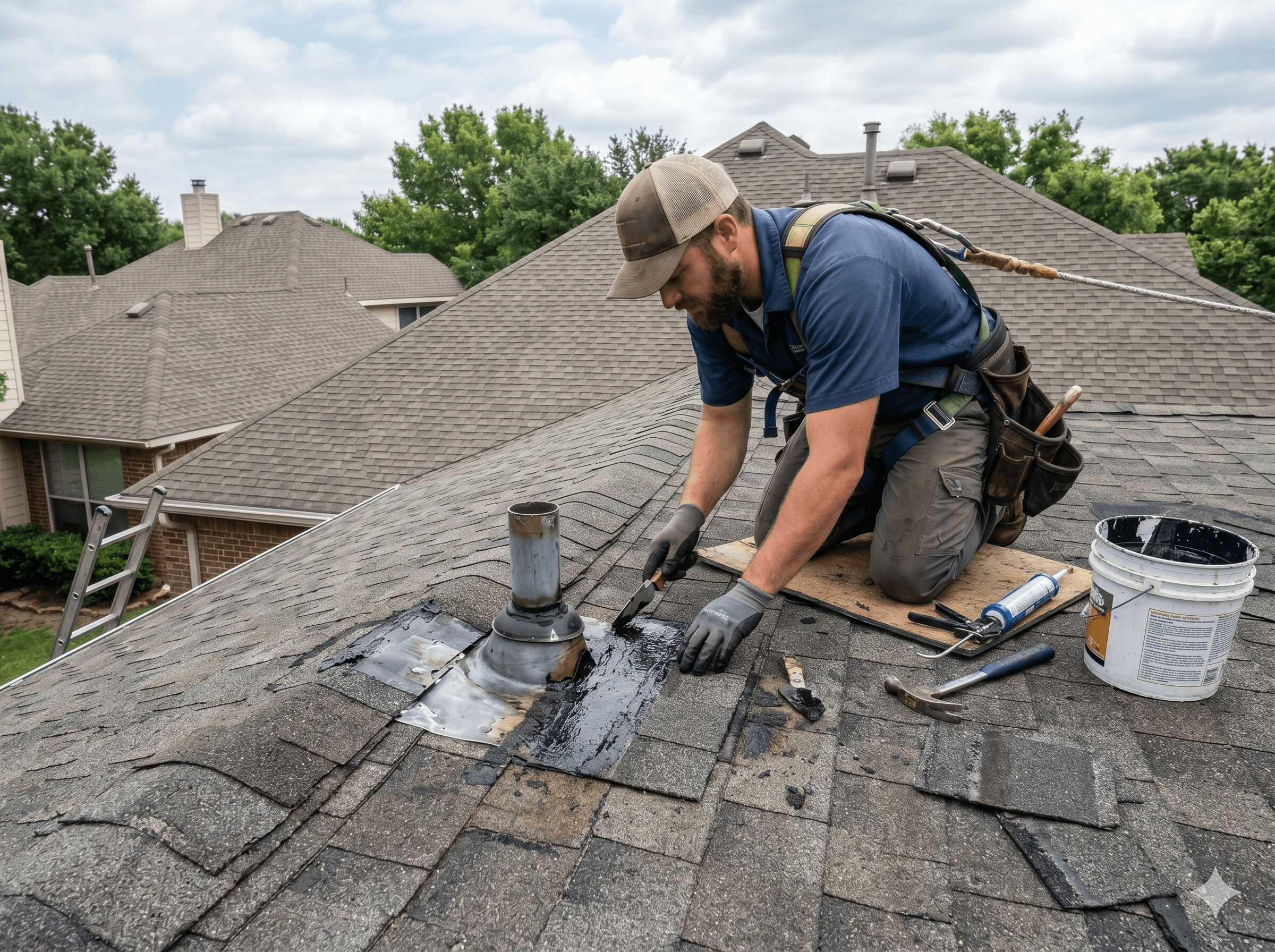

§ 01.05Roofing
